Dimensions

On this page

myPANEL 7 myPANEL 10 myPANEL 11 myPANEL 13 myPANEL 15

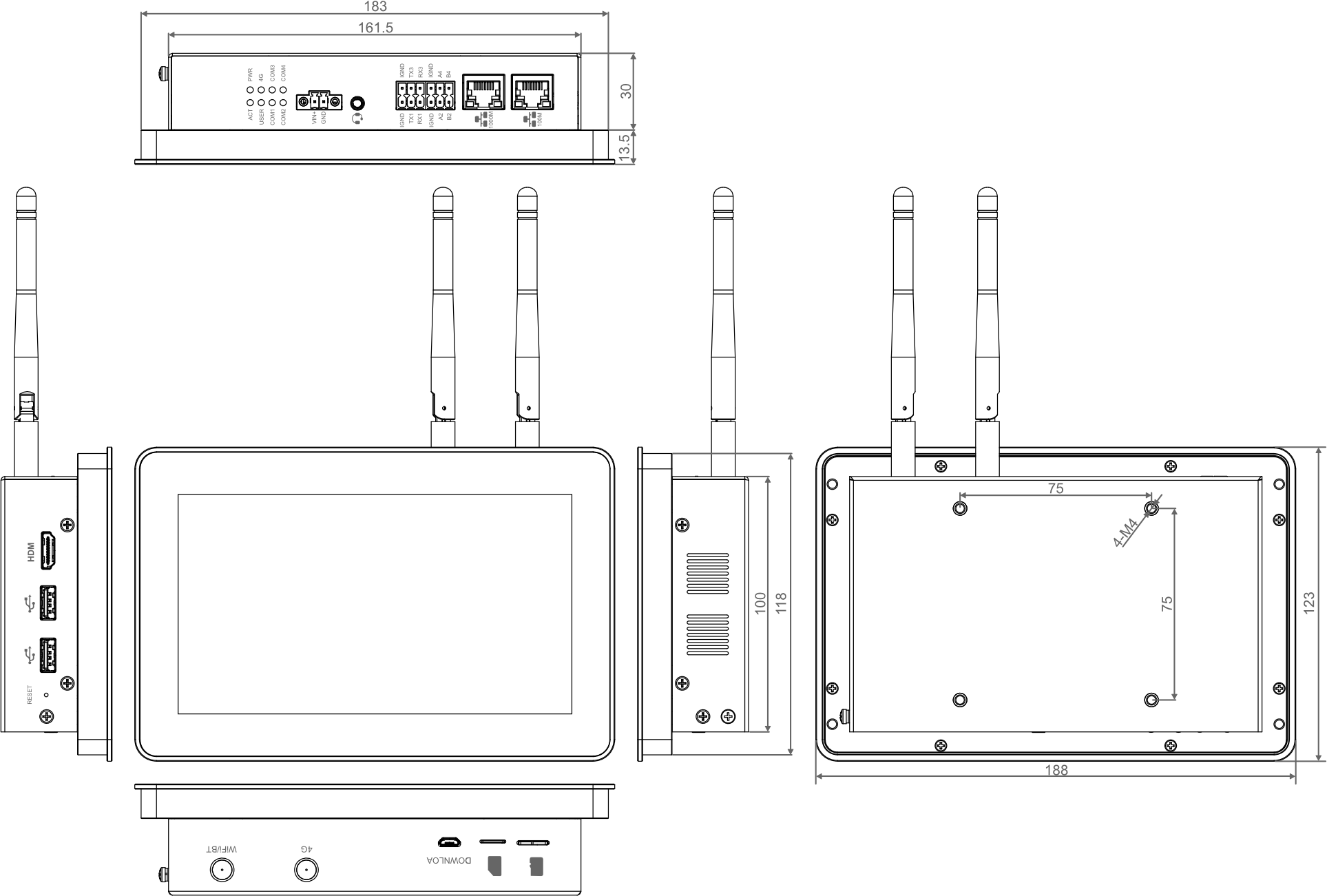

myPANEL 7

2.3.2

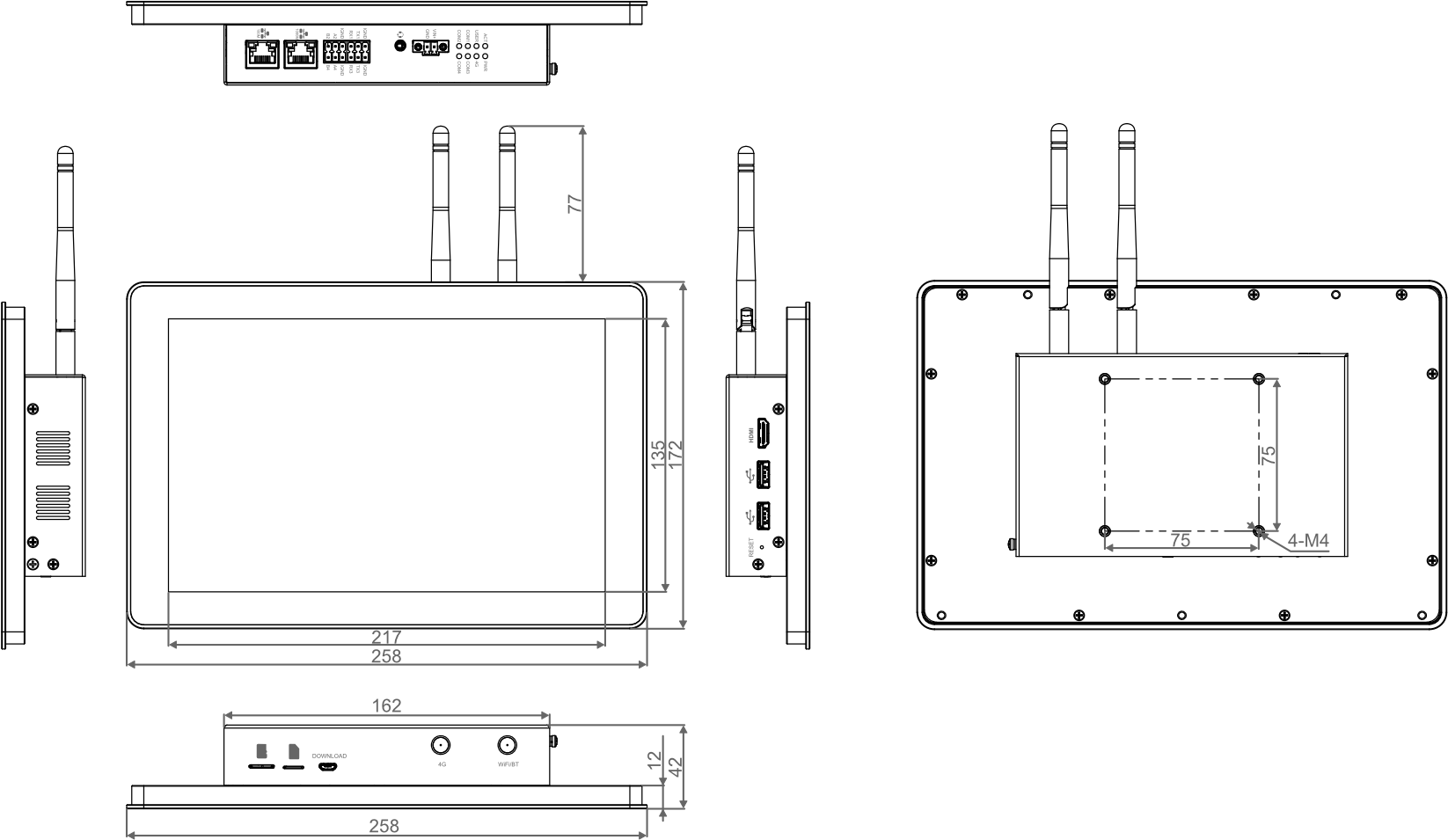

myPANEL 10

2.3.3

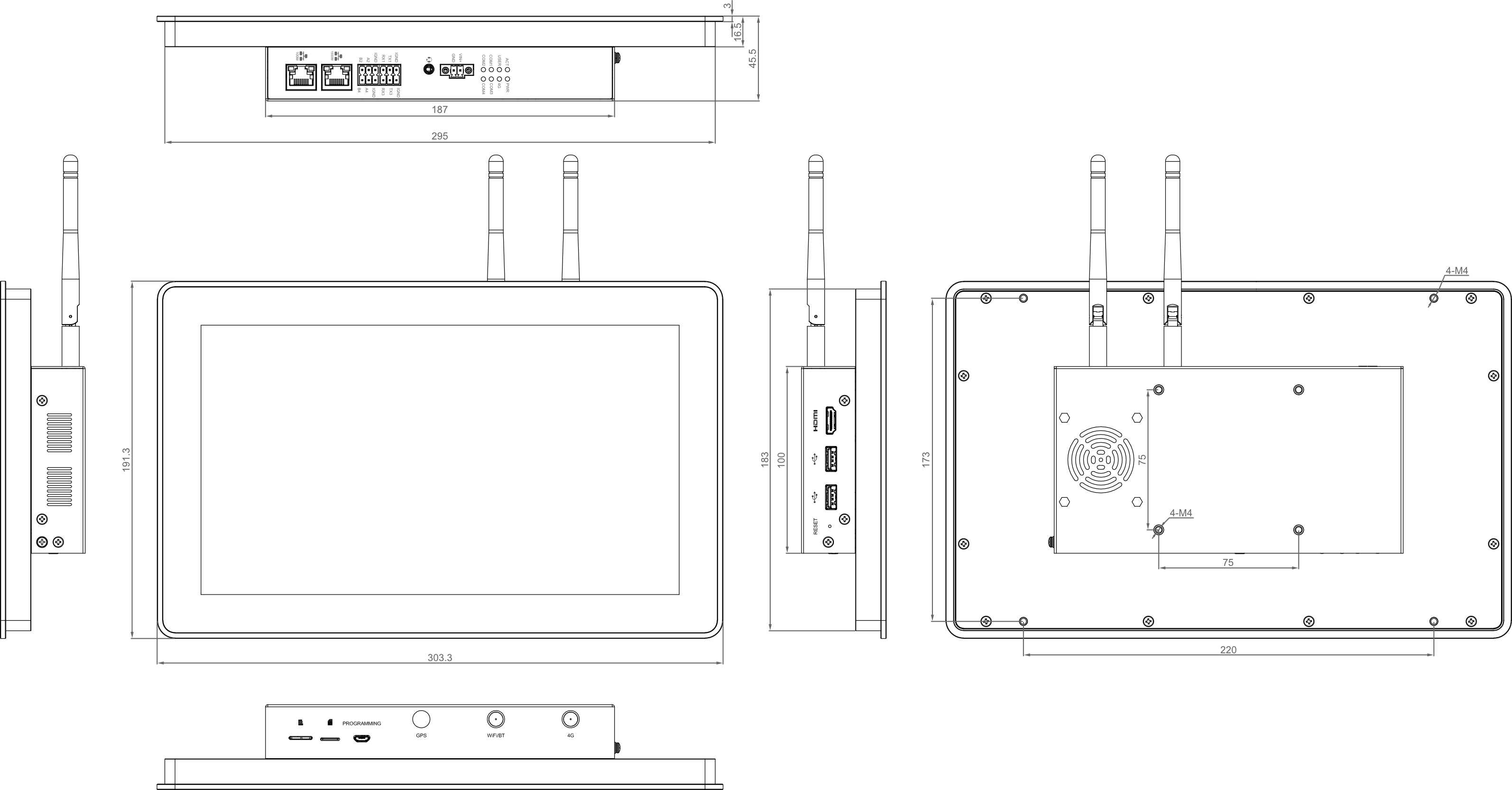

myPANEL 11

2.3.3

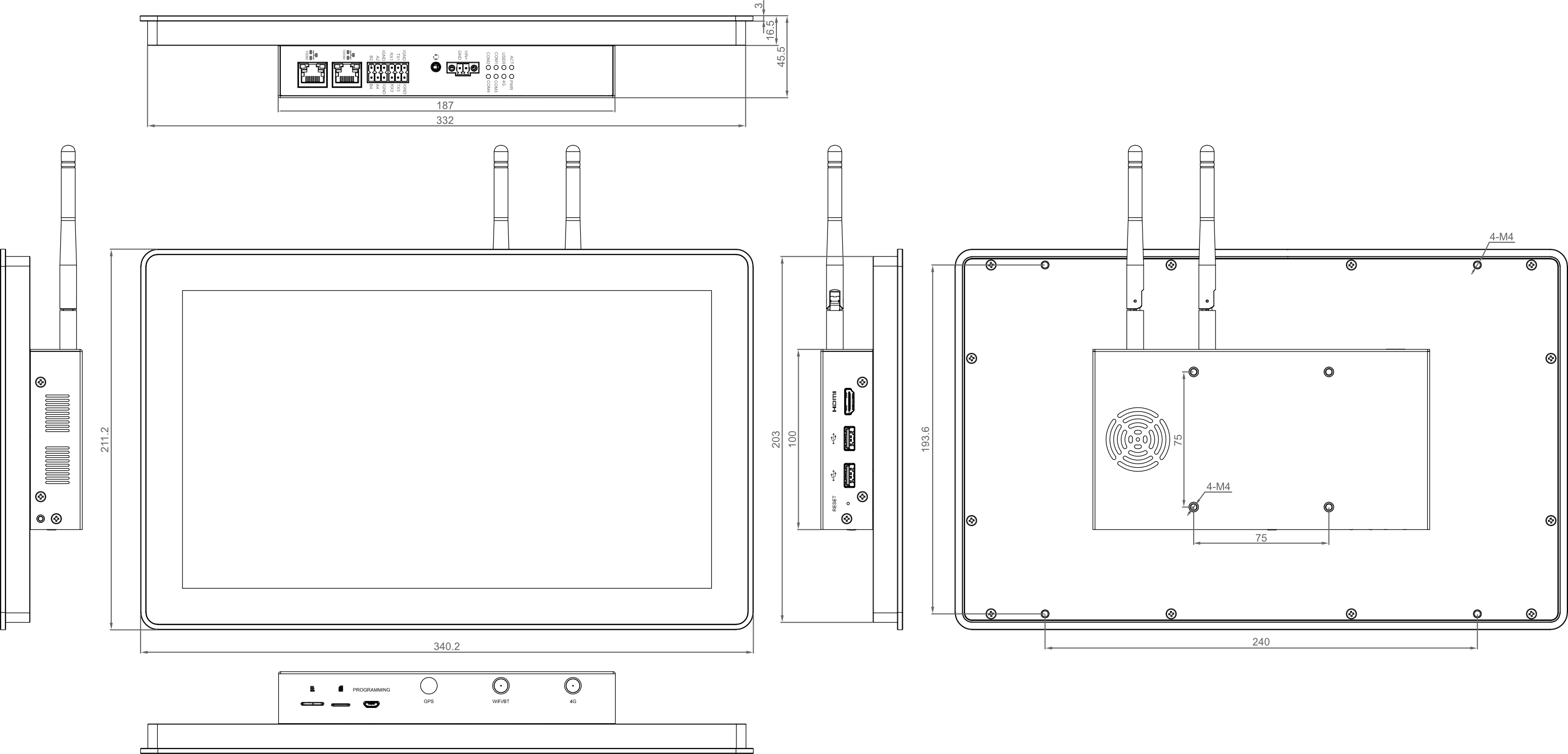

myPANEL 13

2.3.4

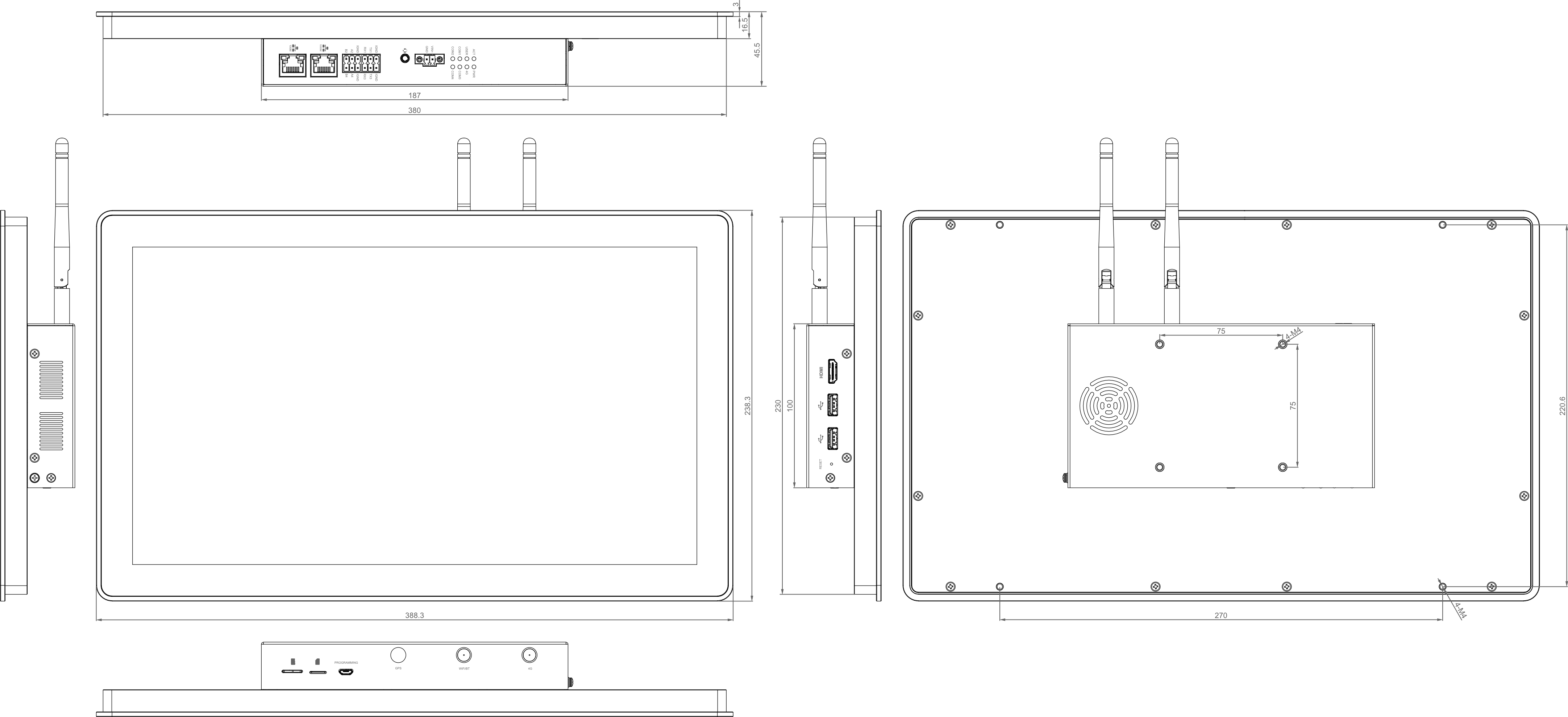

myPANEL 15

2.3.4
