myBOX V7 › myBOX V7
Hardware features

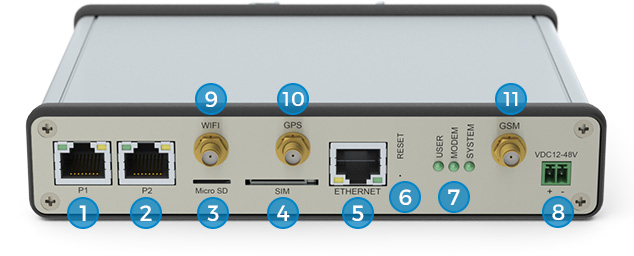

The hardware features of the device are shown in the pictures below:
| Feature | Description |
| 1 | Port 1 (optional Ethernet port or RS-232/RS-485 ports) |
| 2 | Port 2 (optional Ethernet port or RS-232/RS-485 ports) |
| 3 | Micro SD card slot |
| 4 | SIM card compartment |
| 5 | Ethernet port |
| 6 | Reset / Switch-off pin hole |
| 7 | Status LED indicators |
| 8 | Power supply socket |
| 9 | Wi-Fi antenna connector SMA (only for Wi-Fi version) |
| 10 | GPS antenna connector SMA (only for 3G version) |
| 11 | GSM antenna connector SMA (only for 3G version) |
| Feature | Description |

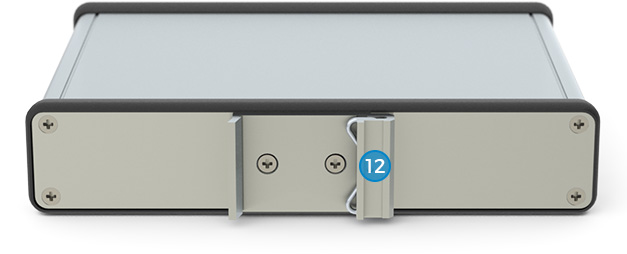

| 12 | DIN Rail holder |
