Hardware features
On this page
The hardware features of the device are shown in the pictures below:

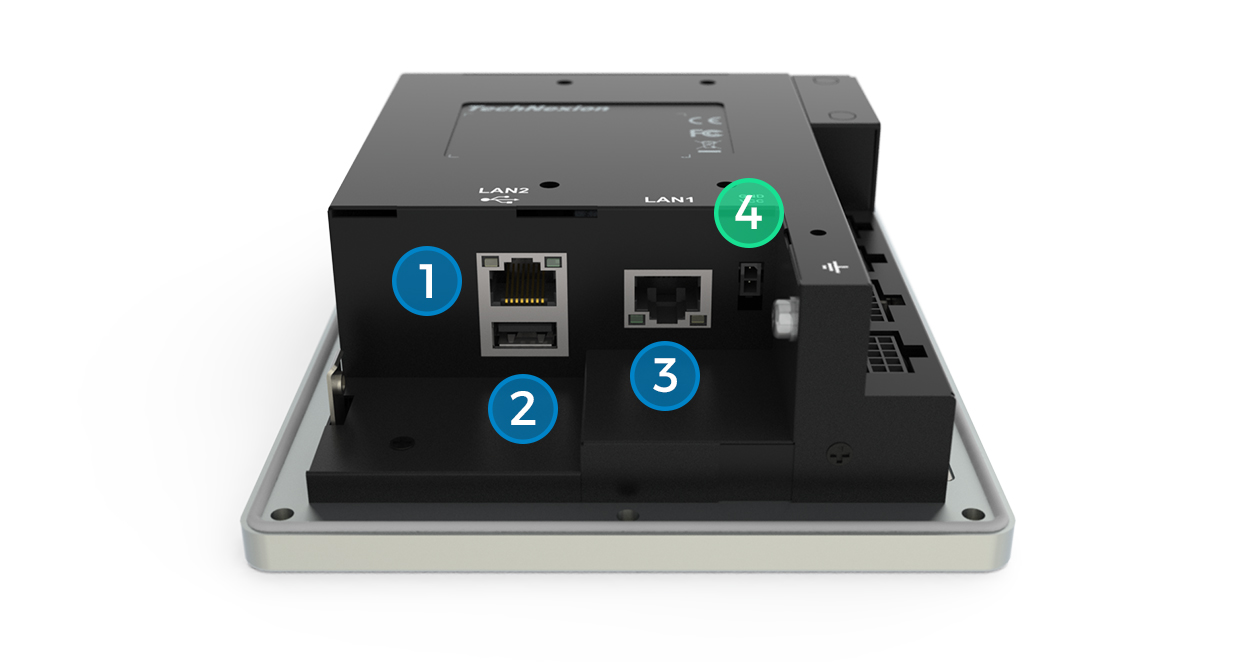

Version 7**″**
| Feature | Description |
| 1 | LAN 1 (RJ45) |
| 2 | USB 2.0 Host |
| 3 | LAN 2 (RJ45) |
| 4 | Power connector |

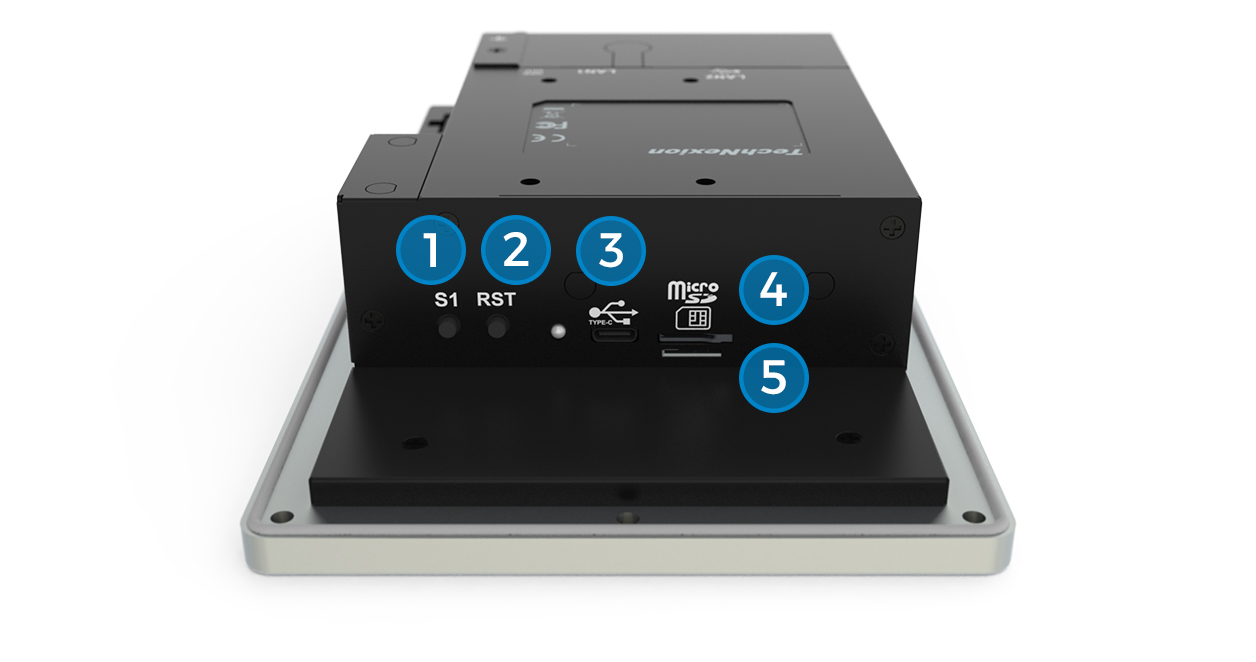

| Feature | Description |
| 1 | Boot select button |
| 2 | Reset button |
| 3 | USB 2.0 OTG (type-C) |
| 4 | MicroSD card slot |
| 5 | Nano-SIM card slot |

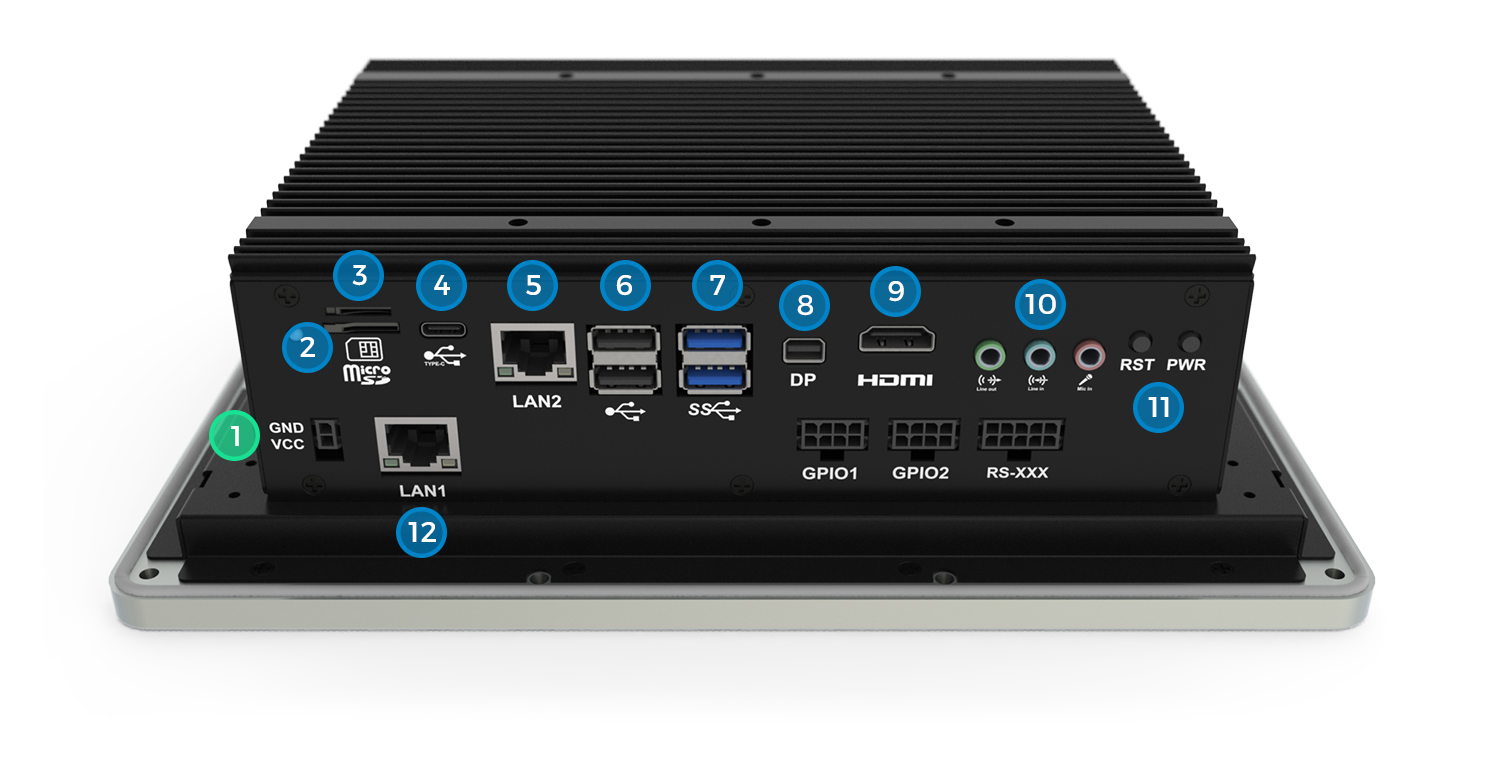

Version 10**″**
| Feature | Description |
| 1 | Power connector |
| 2 | MicroSD card slot |
| 3 | Micro-SIM card slot |
| 4 | USB 3.0 OTG (type-C) |
| 5 | LAN2 (RJ45) |
| 6 | USB 2.0 Host |
| 7 | USB 3.0 Host |
| 8 | Mini Display port (DP) |
| 9 | HDMI port |
| 10 | 3.5 mm jack (microphone), 3.5 mm jack (audio in), 3.5 mm jack (audio out) |
| 11 | Reset button, Power button |
| 12 | LAN1 (RJ45) |

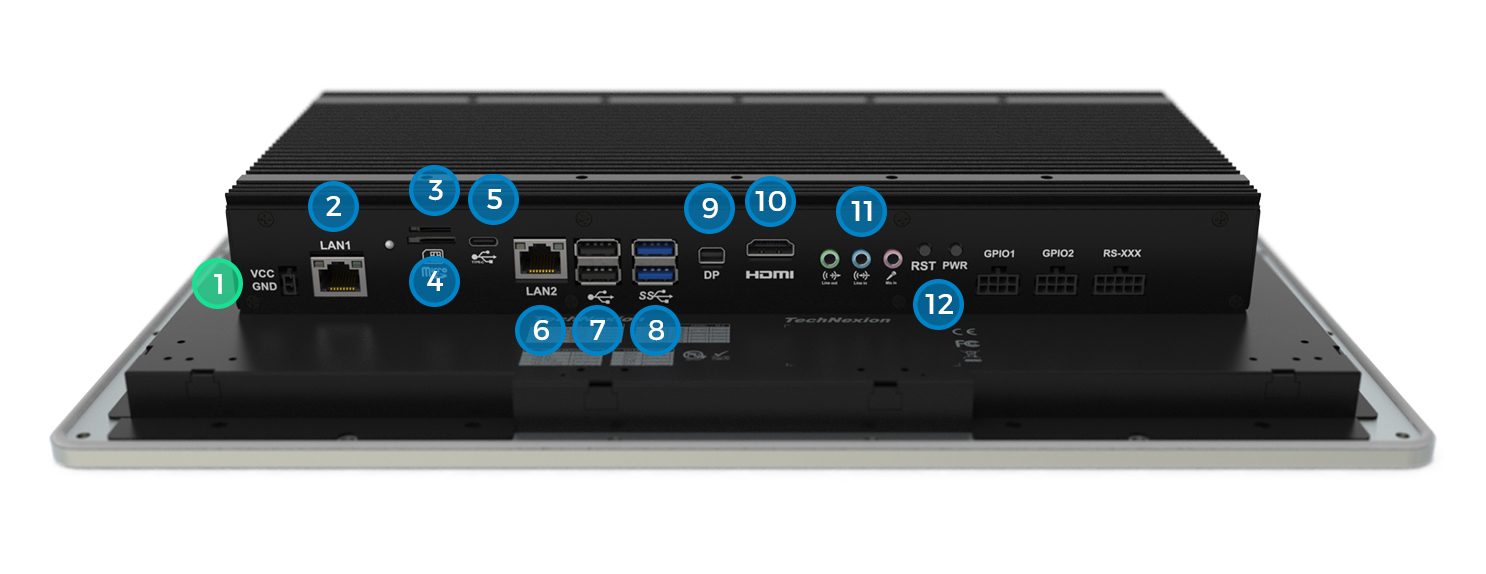

Version15**″**
| Feature | Description |
| 1 | Power connector |
| 2 | LAN1 (RJ45) |
| 3 | Micro-SIM card slot |
| 4 | MicroSD card slot |
| 5 | USB 3.0 OTG (type-C) |
| 6 | LAN 2 (RJ45) |
| 7 | USB 2.0 Host |
| 8 | USB 3.0 Host |
| 9 | Mini Display port (DP) |
| 10 | HDMI port |
| 11 | 3.5 mm jack (microphone), 3.5 mm jack (audio in), 3.5 mm jack (audio out) |
| 12 | Reset button, Power button |
